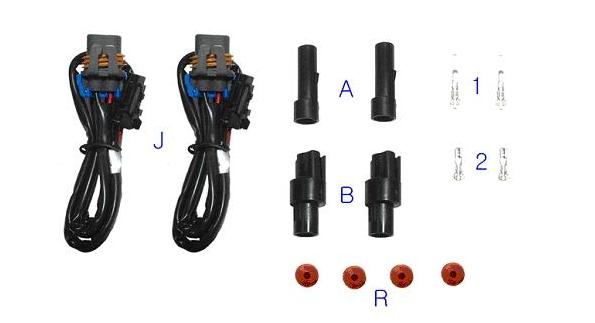

One set of Connecting Jack contains
- 2 Connect wires (HID bulb ~ Ballast): J
- 2 Male sockest: A
- 2 Female sockets: B
- 2 Internal male iron sockets: 1
- 2 Internal female iron sockets: 2
- 4 Rubber rings: R
Installation Flowchart
1. Cut the wire of ballast
2. Put the thicker(white) wire through the hole of
rubber ring and connect a male iron socket (1) and then put a male socket (A).
Put the thin(black) wire through the hole of rubber ring and connect a
female iron socket (2) and then put a female socket (B).
3. Connect the ballast jacks to the bulb jacks
4. Finished picture
