Brand New
CF 14 (EP35)
Fit: 1993-1995 Pontiac Trans Am LED Turn Signal Flasher, EP35 (CF14)
and Much More...
Description :
This Flasher is helping the Led Flashing Rate of Blinking too fast of the Flashing Rate. It will reduce to the normal rate like other car that have Halogen Lights
The reason why is that the Led use lower wattage and current from the original power. The fast flashing rate is dual to the low power, it keep repeatly drawing power. Therefore, you have the fast rated effect on your car.
Note:
If you�ve replaced the regular indicator or tail light bulbs in your car with brighter LED ones, then you may find that the new bulbs are either flashing too quickly, or not flashing at all or are blowing.
Regular bulbs have far more resistance than LED bulbs so the simple way to solve these problems is by replacing your normal thermal flasher with this flasher especially manufactured for LED"s.
Please note we can not offer any compatibilty advice. You need to check your own car operation manual & compare your current flasher"s pin-out to the pin-out of our flasher to decide if it fit
Part # : RL-CF-14
Features:
* Produce no heat compare with those load resistors
* Plug And Play
* Compatible with most cars and bikes
Specifications:
* 12VDC
* 0.02A - 20A

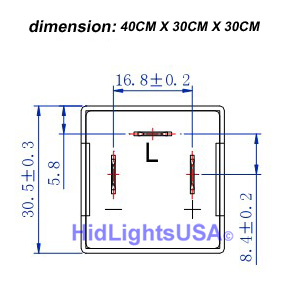

* Dimensions: 3 x 3 x 4cm(1.1 x 1.1 x 1.5�)
* Pin length: 1.2cm (0.4")
* Compatible with most cars and bikes (please check carefully)

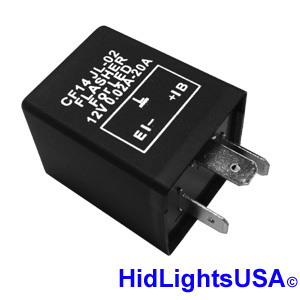

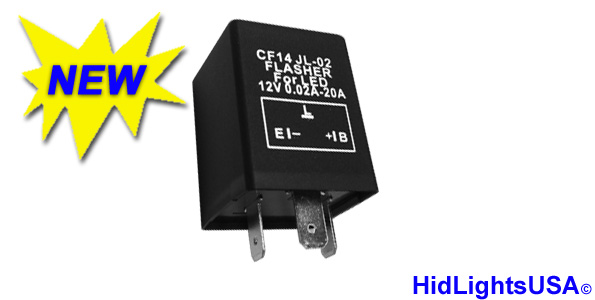

LED Flasher Unit CF14 JL-02
SPECIFICATIONS
Technical Characteristics
Testing 13VDC +- VDC
Nomal Voltage 12VDC
Operating Voltage 11VDC...15VDC
Switch Current 0.1W to 150W
Switch Current 0.02A to 20A
Max. Current .02A - 20A
Flashing Frequency 60 - 120 times per min
Operating Temperature -40�C to +80�C
Life Time up to 400 working hours
Important Information about this LED Flasher:
The LED flasher does not replace all flasher relay. Please check carefully before ordering, please make sure the 3-pin configuration is the same as your vehicle"s. You can usually find your flasher pin out printed right on your flasher. Failure to check this and installation in an incompatible vehicle can blow your fuse, destroy the flasher and void the flasher warranty.
